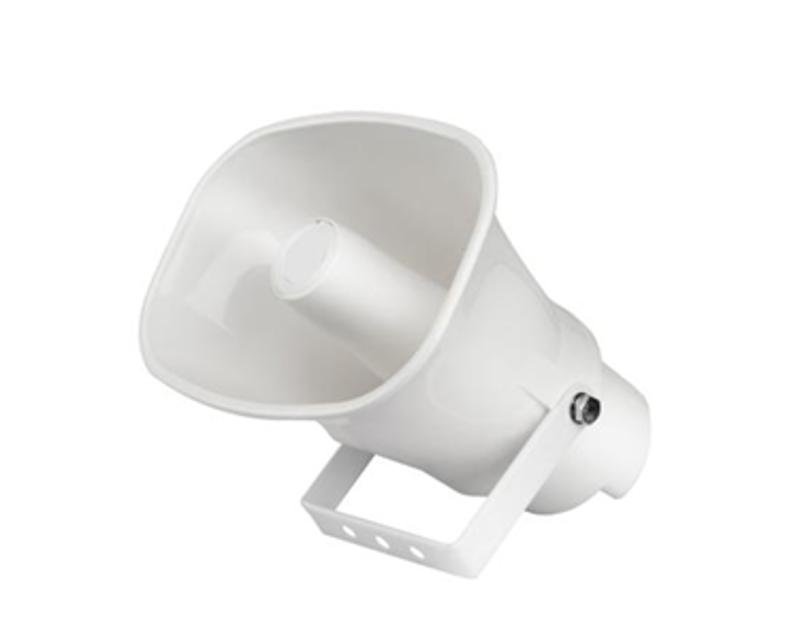

Hikvision 30W IP65 Analog Horn Speaker DS-QAE0330G1T-V

Loud and understood are not the same thing, and a horn speaker exists because of the gap between them. The DS-QAE0330G1T-V is a 30 W analogue horn rated IP65, and it is specified for the places where an ordinary speaker gives up: a yard with machinery running, a loading bay in wind, a car park with hard surfaces on every side, a factory floor where the ambient noise never drops.

What separates a horn from a cone speaker is directivity. A horn projects sound forward into a defined area instead of radiating it into the whole space, which matters far more than wattage in the environments it is bought for.

Where it earns its place on a job

In a reverberant space — bare concrete, steel, glass, a low ceiling over a hard floor — turning the volume up makes speech harder to follow, not easier. The echo of one word arrives on top of the next, and past a certain level every announcement becomes noise with a rhythm. Directing the sound at the people who need to hear it, and keeping it off the surfaces that will throw it back, is what makes an announcement intelligible.

That turns the design into a question of aiming and spacing rather than power. Several horns at moderate level, each covering its own area, will out-perform one loud horn trying to cover everything — and in an emergency, the difference between an announcement people act on and one they ignore is whether they could make out the words.

Before you order — three things to confirm

• The surfaces, not the floor area. Two yards of identical size behave completely differently if one is open ground and the other is walled in concrete. Tell us what the space is made of and what is above it.
• The background noise at the times that matter. A workshop at 7am and the same workshop mid-shift are different acoustic problems. Design for the noisy hour, not the quiet one.
• The amplifier and the rest of the line. A 30 W unit spends more of an amplifier’s budget than a small ceiling speaker. Confirm what is already on the line before adding to it.

Technical specifications

• Manufacturer: Hikvision
• Model: DS-QAE0330G1T-V
• Type: analogue horn speaker
• Rated power: 30 W
• Ingress protection: IP65
• Everything else — sound pressure level, frequency response, impedance, line voltage and tapping options, dispersion angle, mounting bracket detail, dimensions and weight: full manufacturer datasheet available on request, call 16454 and we will send the revision for the batch we are holding.

Compatibility

It is an analogue speaker, so it is driven from an amplifier over speaker cable rather than sitting on the data network. The line arrangement and the amplifier it suits are confirmed against the datasheet before we quote — tell us the amplifier model and what is already connected to it and we will confirm the pairing rather than let you find out on site. Where a site needs zoning that will be re-drawn later, network audio is the other architecture worth pricing; the network ceiling speaker sits on that side of the decision.

What’s in the box

The speaker and the manufacturer’s documentation. Mounting hardware for your particular surface, cable, and any weatherproof junction box are specified with the job rather than assumed — contents for the current revision are confirmed on your order.

Common questions on this model

Can we just turn it up?
In a hard-surfaced space, no — above a certain level extra volume costs you clarity rather than buying it. The fix is more units at lower level, aimed properly, not one unit driven harder.

How many do we need for a yard?
That comes from the shape, the surfaces and the noise, not the square metres. Send us a sketch with the boundaries and what the space is used for and we will lay it out with you.

Is IP65 enough for full outdoor use in Egypt?
IP65 is stated by the manufacturer for this model. What we would add is that mounting position matters as much as rating — under an overhang, out of standing water, and where dust will not pack into it.

Genuine Hikvision, official one-year manufacturer warranty, delivery across Egypt. For the datasheet, project pricing or a layout for your site, call 16454.
