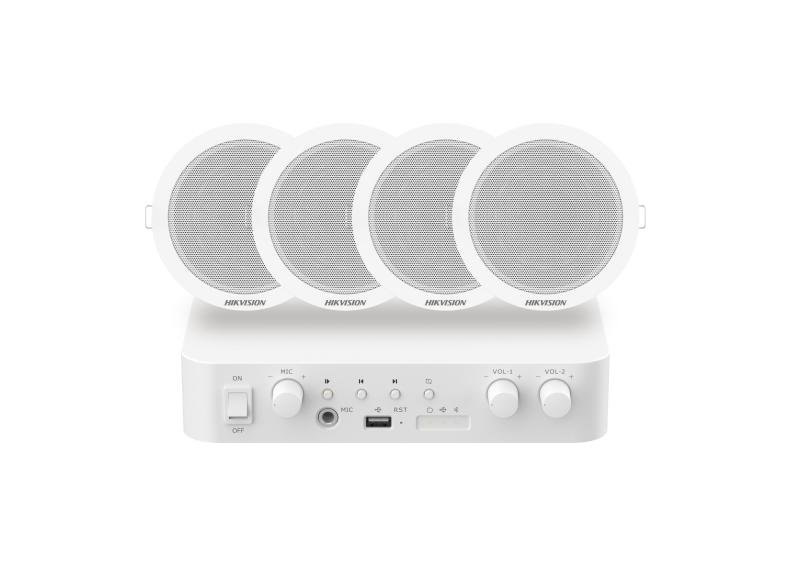

Hikvision 80W Hybrid Network Audio Kit DS-QAE1KA80206-4

Most buildings that get an audio system already have half of one. There is an amplifier in a cupboard from the last fit-out, speaker cable running to places nobody has a drawing for, and a client who does not want to rip it all out to gain the flexibility they are being sold. The DS-QAE1KA80206-4 is an 80 W hybrid network audio kit, and hybrid is the word that matters: it is built for the site that is part network and part analogue, which is most sites.

Where it earns its place on a job

The two architectures each have a place, and the honest position is that a real building often wants both. Network audio makes sense in the areas being refurbished, where structured cabling is going in anyway and zoning will change as the space is re-partitioned. Analogue makes sense where speaker cable already exists and works, and where the zone is never going to move — a plant room, a corridor run, a warehouse that has been the same shape for twenty years.

Forcing one architecture across the whole building means either abandoning cable that was perfectly good, or accepting fixed zoning in the part of the building most likely to change. A hybrid head end lets the decision be made area by area, which is how the money ends up in the right place. Be clear-eyed about the cost of that: two architectures means two things to understand at handover, so the documentation and the training matter more than on a single-architecture job.

Before you order — three things to confirm

• What already exists, and whether it works. Before anything is priced, someone has to trace the existing speaker lines and test them. Cable that is present is not the same as cable that is usable, and this is the single check that decides whether hybrid saves money or just adds complexity.
• Which areas go which way. Mark it on the plan, area by area, with a reason for each. That drawing is the design; without it the system becomes whatever was easiest on the day.
• Who supports it afterwards. A hybrid system has a network side and a wired side, and the person who maintains it needs to understand both. Agree who that is and what they are handed.

Technical specifications

• Manufacturer: Hikvision
• Model: DS-QAE1KA80206-4
• Type: hybrid network audio kit
• Rated power: 80 W
• Speakers supplied: 4
• Everything else — speaker type and rating, output and line configuration, network protocol and platform support, input count and types, cable, mounting hardware, dimensions and supply: full manufacturer datasheet available on request, call 16454.

Compatibility

The hybrid arrangement is the point of this kit, but exactly what it will drive on each side — which network devices, and what analogue line configuration — is confirmed on the datasheet for the shipping firmware rather than assumed. Send us what you already have on site and what you are adding, and we will confirm the pairing in writing before you order. For a site that is entirely network, the network amplifier is the scale-up path; for one that is entirely analogue with fixed zones, the analogue kit is cheaper.

What’s in the box

The kit as supplied by the manufacturer, with its documentation. Additional speakers, cable, network switching, mounting hardware and source equipment are separate — contents for the current revision are confirmed on your order.

Common questions on this model

Can we keep our existing speakers?
Often, if the cable and the speakers test out and the line configuration matches. That is a survey answer, not a catalogue one — and it is worth doing before the quotation rather than after.

Is hybrid harder to run day to day?
It does not have to be, but it is harder to hand over badly. Insist on a drawing showing which areas are which, and a short demonstration to whoever will operate it.

Can we start analogue and add network areas later?
That is exactly the case this arrangement suits. Tell us the two-year plan and we will size the head end so the later phase does not mean replacing it.

Genuine Hikvision, official one-year manufacturer warranty, delivery across Egypt. For the datasheet, a site survey or project pricing, call 16454.
