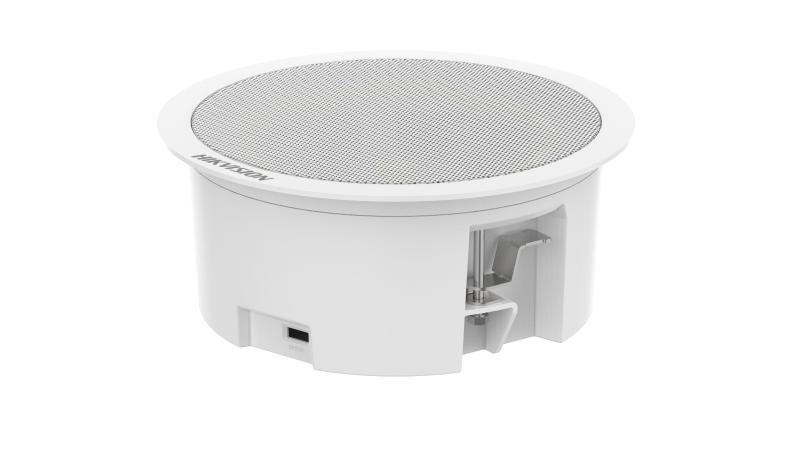

Hikvision 3W Network Ceiling Speaker (PoE) DS-QAZ1203G1-BE

The DS-QAZ1203G1-BE is a 3 W network ceiling speaker powered over the same cable that carries its audio. That single fact — one Cat cable to each point, no speaker line and no separate supply — is what makes network audio a different kind of installation from the analogue systems it competes with.

At 3 W it is a background speaker: an office, a corridor, a reception, a clinic waiting area, a small retail floor. It is there so an announcement can be heard and low-level music can sit under a room, not to fill a hall.

Where it fits

Network audio wins where the structured cabling is already going in anyway. On a fit-out where every ceiling gets data drops for access points and cameras, adding audio points to the same containment and the same patch panel is a small increment — while an analogue system means a second, entirely separate cabling exercise with its own routes, its own amplifier and its own zoning fixed in copper.

It wins twice on buildings that get re-partitioned. A serviced office, a floor let to different tenants over time, a school that reorganises rooms — in those buildings zoning is a setting, so a wall moving does not mean a cabling job. Against that, be clear about the cost side: every speaker needs a network port and a share of the switch’s power budget, so the switch and the cabling are where the money goes instead of into the amplifier.

Before you order — three things to confirm

• Ports and power at the switch. Each speaker occupies a port and draws power from the same budget as the cameras and access points already on it. Count the whole load, not the audio alone.
• The ceiling and the void above it. A recessed ceiling speaker needs a cut-out, clearance above the tile, and something to secure it to. Confirm the ceiling type and what is in the void before the layout is fixed.
• Who owns the network. On a client-managed network, audio devices need addresses, a decision about segregation, and somebody in IT who agrees to it. Get that conversation done before delivery rather than on commissioning day.

Technical specifications

• Manufacturer: Hikvision
• Model: DS-QAZ1203G1-BE
• Rated Power: 3 W
• Impedance: 8 Ω
• Max. Acoustic Pressure: 97 dBSPL
• Sensitivity(1 m, 1 W): 93 dB
• Direction: All directions
• Frequency Response: 300 Hz to 15 kHz
• SNR: 82 dB
• Speaker Unit: Full frequency 5′′ × 1
• Coverage Angle: Conical Coverage: 130°
• Number of Sub Speaker: PoE+（802.3at） 25W: support 3* 3W sub speakers; 12 V, 1.5 A, max. 18W: support 3* 3W sub speakers
• Sub Speaker Connection Method: Impedance Input
• Ethernet Interface: RJ45 10 M/100 M Adaptive Ethernet port × 1
• Local Storage: Built-in 4 GB EMMC (Audio file storage is 1 GB.)
• Alarm: Alarm input × 2
• Audio In: 3.5 mm audio interface × 1
• Audio Out: Fixed resistance output × 1，phoenix terminal，8 Ω; *The primary speaker(3 W, 8 Ω) can be connected to a maximum of 3 secondary speakers(3 W, 8 Ω).
• Power: PoE: 802.3at，12 VDC/1.5 A
• Material: Device body: plastic; Mesh cover: metal
• Mounting Hole Dimension: Ø160 mm (6.30″)
• Dimension: Ø179 mm × 73.5 mm (Ø7.05″ × 2.89″) (Hole size: 160 mm）
• Color: White
• Bluetooth: Bluetooth 5.0, 10 m
• Operating Temperature: -10 °C to 50 °C(14 °F to 122 °F)
• Operating Humidity: ＜90% (No condensation)
• Mounting Depth: 127 mm (5″)

Figures from Hikvision’s published datasheet. We confirm the revision in stock when we quote.

Compatibility

It sits on the data network alongside whatever else is already there, and it is configured rather than wired into a zone. The management platform and the exact protocol support for the shipping firmware are confirmed on the datasheet — tell us what you are running and we will confirm it in writing before you order. Where a site has a small number of fixed zones and no structured cabling to piggyback on, the analogue wall speaker is the cheaper architecture and we will say so.

What’s in the box

The speaker and the manufacturer’s documentation. Network cable, patching, the PoE switch and any ceiling backing are separate — contents for the current revision are confirmed on your order.

Common questions

Is 3 W enough?
For background level in an office or a corridor, yes — that is what it is for. For a canteen, a workshop or anywhere with real background noise, it is the wrong speaker and we will point you at a different one.

Can we mix these with analogue speakers?
Buildings often end up with both. It is workable, but it means two systems to operate unless they are bridged deliberately, so decide that at design stage rather than discovering it later.

Do we need a separate amplifier?
The architecture is different from analogue — the audio arrives over the network. What the site does need is switch ports and PoE budget. Send us the point count and we will size that with you.
