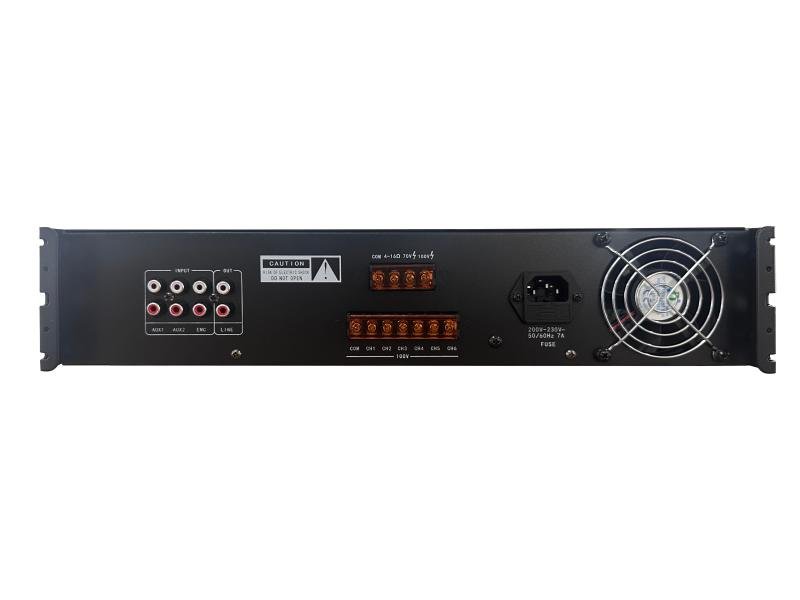

Hikvision 240W 6-Zone Analog Amplifier DS-QAE0A240G1-VB6

An amplifier with six zones is not a bigger amplifier — it is six smaller ones that happen to share a box, and that distinction is the whole reason to buy this one. The DS-QAE0A240G1-VB6 is a 240 W analogue amplifier with six zone outputs, which means six areas of a building that can be addressed separately: paged, muted, or left alone while something is happening next door.

The design question it forces is one most people skip: where do the zone boundaries actually go?

Where it earns its place on a job

Zones are drawn wrongly when they follow the floor plan instead of following what happens in the building. A restaurant with a dining room, a terrace and a kitchen has three zones because those three places want different things at the same time — music at one level inside, lower outside where neighbours can hear it, and nothing at all in the kitchen except a page. Divide the same building by floor and you get zones nobody can use.

The test is simple: two areas belong in different zones if there is ever a moment when one should be silent and the other should not. Anything else is one zone. Applied honestly, that usually produces fewer zones than a client first asks for and puts them in different places — which is a better outcome than discovering after commissioning that the only way to quieten the terrace is to quieten the whole floor.

Before you order — three things to confirm

• The zone list, written down. Name each zone and say what it contains. This is the single document the whole system is built from, and it should be agreed with whoever will operate it, not just with whoever signs the order.
• The load per zone. Each zone’s speakers draw from the total budget. Count the points in each zone and their ratings before ordering, because a zone list that fits the outputs but not the power is a redesign.
• Who operates it, and from where. An amplifier in a locked plant room that staff cannot reach means every adjustment is a phone call. Decide where the control lives and who is allowed to touch it.

Technical specifications

• Manufacturer: Hikvision
• Model: DS-QAE0A240G1-VB6
• Type: analogue mixer amplifier
• Rated power: 240 W total
• Zones: 6
• Everything else — output line configuration, impedance, input count and types, priority and paging behaviour, rack units, dimensions, weight and supply: full manufacturer datasheet available on request, call 16454.

Compatibility

Analogue, so the speakers connect over speaker cable rather than the data network, and the zoning is fixed by how the building is wired. That is worth knowing before you commit: re-drawing a zone later means re-drawing cable. Where zones will change — a serviced building, a space that gets re-partitioned — network audio moves that decision into configuration instead, and the network amplifier is where that architecture starts. Send us the zone list and we will tell you honestly which way round is cheaper for your site.

What’s in the box

The amplifier and the manufacturer’s documentation. Speakers, cable, rack hardware, microphones and any source equipment are separate line items — contents for the current revision are confirmed on your order.

Common questions on this model

How many speakers can we put on it?
That depends on the rating of each speaker and how they are distributed across the six zones, not on a single number. Send us the point count per zone and we will work it against the datasheet.

Can one zone be louder than another?
That is the reason to buy a zoned amplifier rather than a single-output one. Exactly what is adjustable per zone on this model is confirmed on the datasheet.

We only need three zones today.
Then you have headroom, which is usually worth having — buildings gain zones far more often than they lose them. But confirm the power as well as the zone count; spare outputs are no use if the budget is already spent.

Genuine Hikvision, official one-year manufacturer warranty, delivery across Egypt. For the datasheet, a zone design or project pricing, call 16454.
