Hikvision DS-K1T8005MFWX-B Pro Series Fingerprint Access Control Terminal with Battery Support

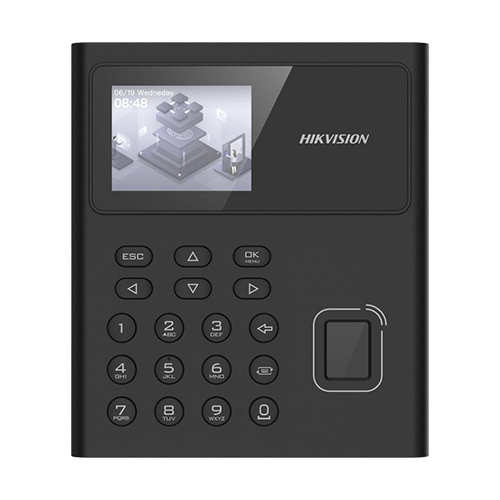

Hikvision DS-K1T8005MFWX-B: Pro Series Access Control Fingerprint Machine

Fingerprint + Card + PIN. Built-In Wi-Fi. Keeps Working When the Power Doesn’t.

Most access control fingerprint machines stop completely the moment the power goes out — which is exactly the moment you need them most. The Hikvision DS-K1T8005MFWX-B solves that with a specialized backplate bracket designed to house a battery, so this access control fingerprint machine keeps authenticating staff and logging attendance through a blackout (battery sold separately).

Furthermore, built-in Wi-Fi makes it just as easy to deploy in a shop with unreliable cabling as in a modern office, cutting installation time and cost significantly on retrofit projects.

Key Features

• Battery Backup Support: The dedicated bracket houses a backup battery so the door keeps working during power cuts — battery purchased separately.
• 3-in-1 Authentication: Combines optical fingerprint, Mifare card (13.56 MHz M1), and PIN code access in a single compact device.
• Built-In Wi-Fi (802.11b/g/n): 2.4 GHz wireless connectivity cuts cabling time and cost on retrofit installs.
• Integrated Time & Attendance: Tracks every check-in and check-out automatically, with reports exportable via USB or the network.
• 3,000 Fingerprints / 3,000 Cards / 100,000 Events: Right-sized capacity for small-to-medium teams.
• Remote Management: Manage users, permissions, and event logs remotely through Hik-Connect or iVMS-4200.
• Standalone Operation: Works fully offline and syncs data automatically once the network connection returns.
• ISAPI & ISUP 5.0: Standard protocol support ensures compatibility with your existing access control infrastructure.

What’s in the Box

• 1× Hikvision DS-K1T8005MFWX-B Terminal
• Battery Mounting Bracket (Specialized backplate)
• Mounting Screws and Anchors
• Wiring Connectors / Pigtails
• Quick Start Guide
